Asgard 3 Stove Spare Parts

The insulation parts in vermiculite help to insulate the combustion chamber and protect the stove’s steel exterior against the high temperatures.

Vermiculite is a lightweighted and non-flammable natural material with a high insulating power. The material is sensitive towards hits and overfiring and should therefore be handled carefully when, for example, replacing the parts or adding firewood in the stove.

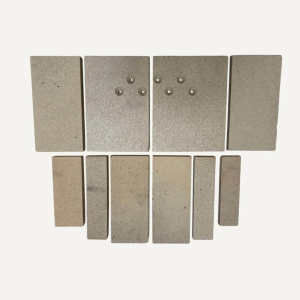

This set consists of all insulation parts for the combustion chamber’s bottom and sides. The baffle plate can be bought separately.

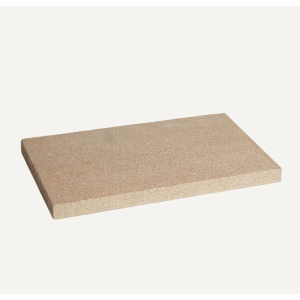

Baffle plate in high insulating vermiculite that is placed at the top of the combustion chamber above the other insulation tiles.

The baffle plate is designed to lead the flue gases to the back of the combustion chamber towards the flue pipes. This way the heat is used and distributed in the best way possible.

Replacement HD Stove Glass suitable for the Asgard 3.
Manufactured from high-performance transparent glass-ceramic designed for use in wood burning and multi-fuel appliances.

Specifications

• Dimensions: 320mm x 320mm
• Thickness: 4mm
• Shape: Square
• Material: High-performance transparent glass-ceramic
• Continuous operating temperature: Up to 700°C

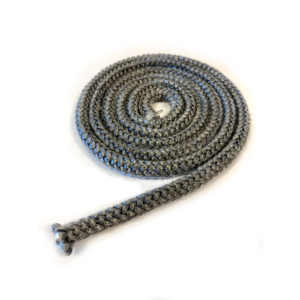

Fire Rope is used to form an air tight seal between the stove door and the stove body to maximise the efficiency and heat output of the stove. A poor seal will allow for additional air to get into the stove fire box increasing the rate of fuel burn and reduce control over the fire burn rate. Rope thickness will vary according to the manufacturer and the size of the stove. Fire Rope is held in place by a High Temperature Rope Adhesive.

Rope Kit contains: 2.5m Fire Rope + Rope End + High Temperature Rope Adhesive.

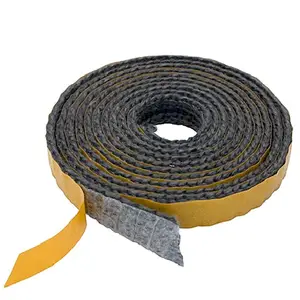

The Glass Rope Gasket provides an air tight seal between the glass panel and the metal frame on the stove door. It prevents the glass panel grinding on the metal frame of the stove door when the stove is lit, as the glass expands in the frame.
